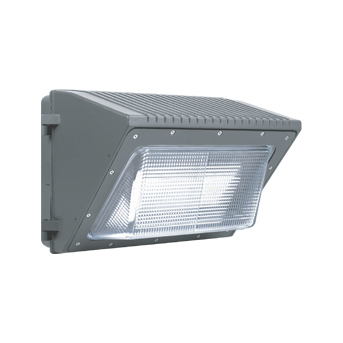

WALL PACK

/

WP1-LED

The perfect luminaires for outdoor pathway illumination.

Specifications

Rated Power
30/50/60/70/100W
Delivered Lumen
129 lm/W
Supply Voltage
120-277 VAC
IP Rating
IP65
CRI
70
Control
Non-Dimmable, 0-10V
Light Source
LUMILEDS
Lamp Life
75,000 Hrs
Color Temperature
3000/4000/5000K
Projection
87°x118°
Mounting
Wall Mount
Connection
Outdoor Rated Connections
Dimensions
391x252x244 mm
Power Supply Details
Switching, 0-10V
Body Material
Die-cast Aluminum
Body Finish
Black, White
Notes
LED Quantity: 114/174/228/282 LEDs
Options
Lens Options: Glass Diffuser

Projection

87°x118°

Accessories

Outdoor Rated Connections

Mounting

Wall / Surface Mount

Control

Non-Dimmable
0-10V
