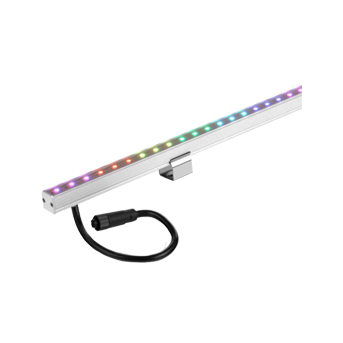

VERTEX PIXEL

/

VP-80 SERIES

Linear media bar with exceptional durability.

Specifications

Rated Power
4 W/m
Delivered Lumen
50lm/W
Supply Voltage
24V DC
IP Rating
IP67
CRI
80
Control
DMX
Light Source
CREE / OSRAM / SAMSUNG
Lamp Life
50,000 Hrs
Color Temperature
RGB
Projection
110º
Mounting
Surface Mount
Connection
Parallel Connection
Dimensions
23.38 x 28.50 mm
Power Supply Details
DMX
Body Material
Varnished 6063T Aluminium (Body)
Body Finish
Aluminium
Notes
LED Quantity: 8 LED/m Wiring: Provided with cables with connectors for loop-in and loop-out.

Projection

110º

Accessories

Parallel Connection

Mounting

Surface Mount

Control

DMX

Technical Files

Specification Sheet

Images

JPG
