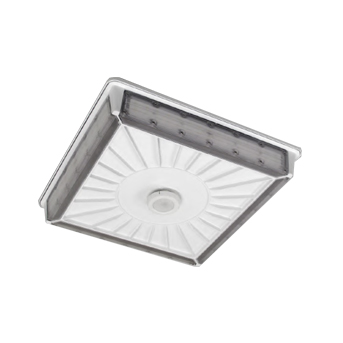

PARKING GARAGE LIGHT

/

PGL

Energy-saving ceiling luminaire ideal for wide lighting distribution.

Specifications

Rated Power
30/45/70 W
Delivered Lumen
3460 lm (PGL-30W) 5190 lm (PGL-45W) 8070 lm (PGL-70W)
Supply Voltage
120-277 VAC
IP Rating
IP65
CRI
80+
Control
Non-Dimmable, DALI, 0-10V Dimmable
Light Source
CREE
Lamp Life
60,000 Hrs
Color Temperature
3000/4000/5000K
Projection
274º
Mounting
Surface Mount
Connection
Outdoor Rated Connections
Dimensions
355.4 x 355.4 x 109 mm
Power Supply Details
ON/OFF 0 -10V DALI
Body Material
Die-cast Aluminum
Body Finish
White, Bronze
Notes
LED Quantity: 256 Nos

Projection

274º

Accessories

Motion Sensor
Emergency Light

Mounting

Surface Mount

Power Supply

Outdoor Rated Connections

Technical Files

Specification Sheet

Images

JPG
