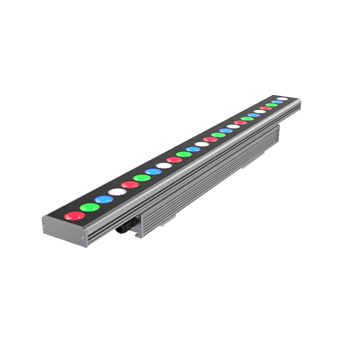

LINEAR WALL WASHER
/
LWW PLUS-RGB/RGBW
Sturdy and sleek inground fitting made of 316 grade stainless steel designed to withstand high salinity environment . Available in specially engineered 3 different optical distribution to ensure utmost design flexibility and minimum glare.
Specifications
Rated Power
12 / 24 / 36 / 48 W
Delivered Lumen
90-100 lm/W @ 3500K
Supply Voltage
100-277 VAC
IP Rating
IP66
CRI
90+
Control
Non-Dimmable, TRIAC, DALI, 0-10V Dimmable
Light Source
CREE / NICHIA
Lamp Life
50,000 Hrs
Color Temperature
RGB/RGBW
Projection
15°, 20°, 35°, 50°, 10x40°
Mounting
Surface Mount
Connection
Outdoor Rated Connections
Dimensions
304, 598, 894, 1183(L) x 60(B) x 61.5(H)
Power Supply Details
ON/OFF TRIAC 0-10V DALI
Body Material
6063 High Density Aluminum
Body Finish
Black, White, Grey
Notes
Available Length: 304mm, 598mm, 891mm, 1183mm
Options
Lens Options: Clear Tempered Glass
Projection
15°
20°
35°
50°
10x40°
Accessories
Adjustable Flip-flop (Mounting Bracket)
Anti-Glare Louver Symmetric
Anti-Glare Louver Asymmetric
Mounting
Surface Mount
Control
DMX
DALI
0-10V
